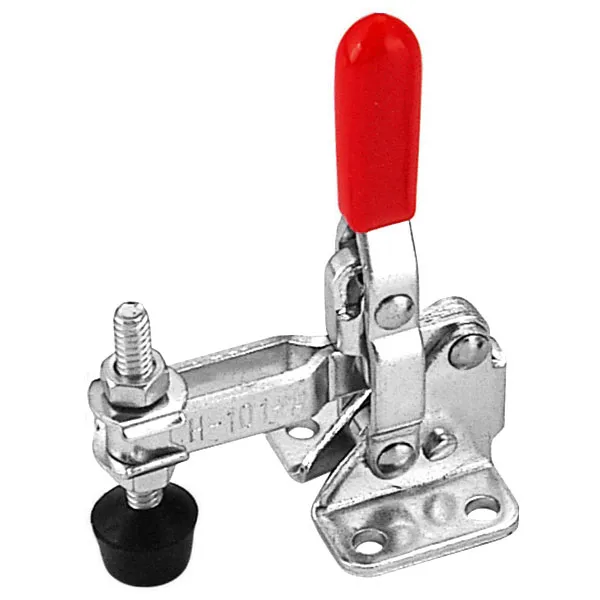

TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE
Price range: $30.00 through $177.00 ex-GST
Industrial quality toggle clamp for precision clamping tasks.
Flanged Base Type
Straight Handle
Bar Opens: 100°
Handle Opens: 56°
Weight: 60g
Reach: 26mm
Height: 77mm
Holding Capacity: 50kg
Spindle Type: Cushion
Bar Type: U Bar
| Weight | 0.068 kg |
|---|---|
| Dimensions | 77 mm |
| Image | Code | Product Nane | Specifications | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|
 | CH-12050 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 91KG CAP, 32.9MM REACH | Flanged Base Type Straight Handle Bar Opens: 100° Handle Opens: 60° Weight: 170g Reach: 32.9mm Height: 97.3mm Holding Capacity: 91kg Spindle Type: Cushion Bar Type: Solid | In Stock | $45.00 ex-GST | ||
| CH-11502-B | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 150KG CAP, 43MM REACH | Straight Base Type Straight Handle Bar Opens: 185° Handle Opens: 110° Weight: 230g Reach: 43mm Height: 123mm Holding Capacity: 150kg Spindle Type: Bolt Bar Type: U Bar | In Stock | $56.00 ex-GST | ||
| CH-11421 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 200KG CAP, 63MM REACH | Flanged Base Type Straight Handle Bar Opens: 94° Handle Opens: 45° Weight: 370g Reach: 63mm Height: 139mm Holding Capacity: 200kg Spindle Type: Bolt Bar Type: U Bar | In Stock | $58.00 ex-GST | ||
| CH-11401 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 100KG CAP, 34MM REACH | Flanged Base Type Straight Handle Bar Opens: 95° Handle Opens: 65° Weight: 200g Reach: 34mm Height: 110mm Holding Capacity: 100kg Spindle Type: Bolt Bar Type: Solid | In Stock | $40.00 ex-GST | ||
| CH-10752-B | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 75KG CAP, 31MM REACH | Flanged Base Type Straight Handle Bar Opens: 195° Handle Opens: 125° Weight: 50g Reach: 31mm Height: 86.5mm Holding Capacity: 75kg Spindle Type: Bolt Bar Type: U Bar | In Stock | $40.00 ex-GST | ||
| CH-10247 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 450KG CAP, 125MM REACH | Flanged Base Type Straight Handle Bar Opens: 115° Handle Opens: 68° Weight: 1250g Reach: 125.4mm Height: 225.4mm Holding Capacity: 450kg Spindle Type: Bolt Bar Type: U Bar | In Stock | $177.00 ex-GST | ||
| CH-101-H | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 450KG CAP, 128MM REACH | Flanged Base Type Straight Handle Bar Opens: 101° Handle Opens: 63° Weight: 1250g Reach: 128mm Height: 280mm Holding Capacity: 450kg Spindle Type: Bolt Bar Type: U Bar | In Stock | $98.00 ex-GST | ||
| CH-101-EL | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 360KG CAP, 85MM REACH | Flanged Base Type Straight Handle Bar Opens: 90° Handle Opens: 60° Weight: 860g Reach: 85mm Height: 230mm Holding Capacity: 360kg Spindle Type: Cushion Bar Type: U Bar | In Stock | $82.00 ex-GST | ||
| CH-101-E-20 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 180KG CAP, 204MM REACH | Flanged Base Type Straight Handle Bar Opens: 100° Handle Opens: 60° Weight: 440g Reach: 204mm Height: 145mm Holding Capacity: 180kg Spindle Type: Cushion Bar Type: U Bar | In Stock | $66.00 ex-GST | ||
| CH-101-D-15 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 50KG CAP, 26MM REACH | Flanged Base Type Straight Handle Bar Opens: 100° Handle Opens: 60° Weight: 412g Reach: 154mm Height: 145mm Holding Capacity: 180kg Spindle Type: Cushion Bar Type: U Bar | In Stock | $64.00 ex-GST | ||

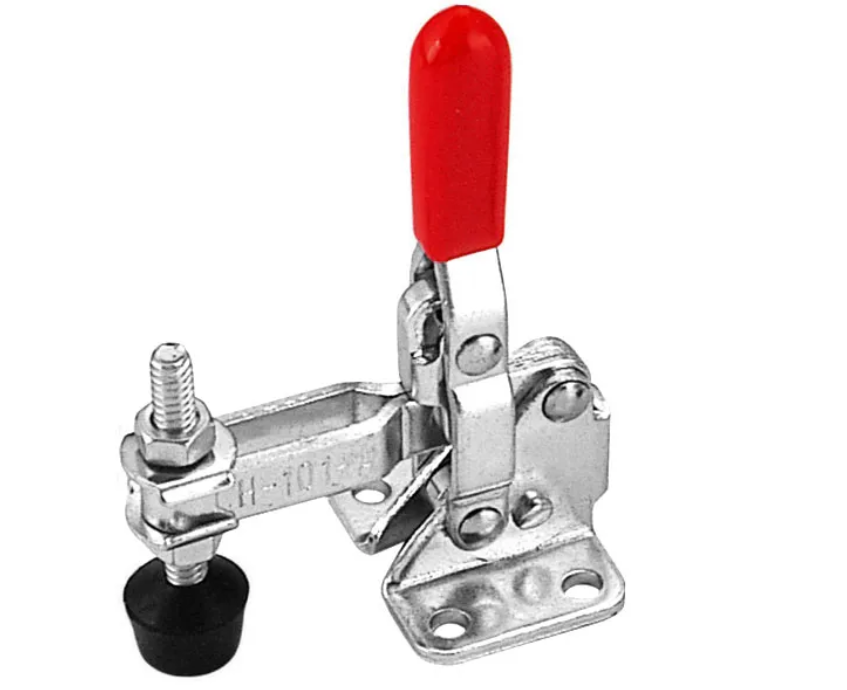

| CH-101-A | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 180KG CAP, 154MM REACH | Flanged Base Type Straight Handle Bar Opens: 100° Handle Opens: 56° Weight: 60g Reach: 26mm Height: 77mm Holding Capacity: 50kg Spindle Type: Cushion Bar Type: U Bar | In Stock | $30.00 ex-GST | ||
| CH-12050-USS | TOGGLE CLAMP, STAINLESS STEEL, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 91KG CAP, 33MM REACH | Stainless Steel Flanged Base Type Straight Handle Bar Opens: 100° Handle Opens: 60° Reach: 33mm Height: 97.3mm Holding Capacity: 91kg Spindle Type: Cushion Bar Type: Solid | In Stock | $115.00 ex-GST | ||
| CH-12130 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 227KG CAP, 71.4MM REACH | Flanged Base Type Straight Handle Bar Opens: 100° Handle Opens: 60° Weight: 355g Reach: 71.4mm Height: 140mm Holding Capacity: 227kg Spindle Type: Cushion Bar Type: U Bar | In Stock | $58.00 ex-GST | ||
| CH-12132 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 227KG CAP, 95.2MM REACH | Flanged Base Type Straight Handle Bar Opens: 100° Handle Opens: 60° Weight: 370g Reach: 95.2mm Height: 140mm Holding Capacity: 227kg Spindle Type: Cushion Bar Type: U Bar | In Stock | $60.00 ex-GST | ||
| CH-12205 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 182KG CAP, 106MM REACH | Flanged Base Type Straight Handle Bar Opens: 101° Handle Opens: 57° Weight: 620g Reach: 106.3mm Height: 200mm Holding Capacity: 182kg Spindle Type: Cushion Bar Type: U Bar | In Stock | $72.00 ex-GST | ||
| CH-12265 | TOGGLE CLAMP, VERTICAL, FLANGED BASE, STRAIGHT HANDLE, 340KG CAP, 85.1MM REACH | Flanged Base Type Straight Handle Bar Opens: 105° Handle Opens: 58° Weight: 635g Reach: 85.1mm Height: 202mm Holding Capacity: 340kg Spindle Type: Cushion Bar Type: U Bar | In Stock | $104.00 ex-GST |
