Code: SBC/24
Bar Length: 600mm
Clamp Capacity: 450mm
Throat Depth: 50mm (2″)
Width of Clamp Face: 30mm (1-3/16)

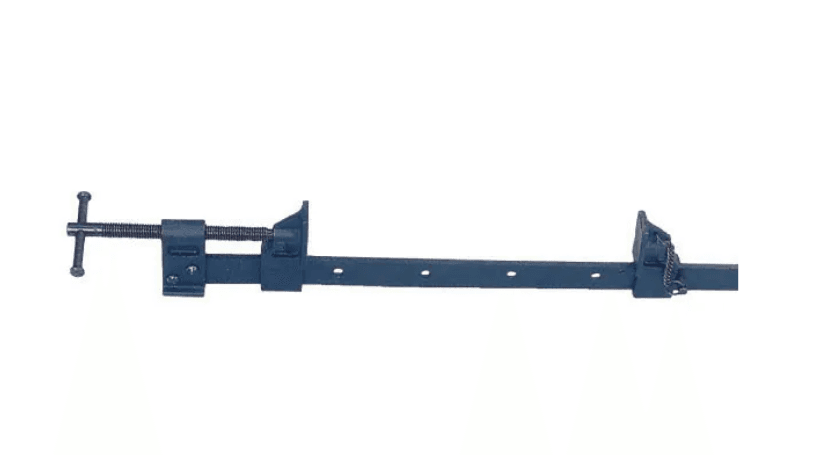

SBC/24 GROZ SASH CLAMP, RECTANGULAR SECTION, 600MM LONG 450MM CAPACITY
Price range: $57.00 through $94.00 ex-GST
Bar cramps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building.
The bars are made from drawn steel with a section of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength even under heavy tension. Both head and slide have a flat bottom allowing the bar to stand upright without support.
The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action.
Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
The screw has rolled Acme threads that impart extra strength and are wear resistant.
| Weight | 3 kg |
|---|---|
| brand |
| Image | Code | Product Name | Specificatioons | Price | Quantity | |
|---|---|---|---|---|---|---|
 | GZ-39115 | SBC/54 GROZ SASH CLAMP, RECTANGULAR SECTION, 1350MM LONG 1200MM CAPACITY | Code: SBC/54 Bar Length: 1350mm Clamp Capacity: 1200mm Throat Depth: 50mm (2") Width of Clamp Face: 30mm (1-3/16") | $94.00 ex-GST | ||
| GZ-39114 | SBC/48 GROZ SASH CLAMP, RECTANGULAR SECTION, 1200MM LONG 1050MM CAPACITY | Code: SBC/48 Bar Length: 1200mm Clamp Capacity: 1050mm Throat Depth: 50mm (2") Width of Clamp Face: 30mm (1-3/16") | $85.00 ex-GST | ||
| GZ-39113 | SBC/42 GROZ SASH CLAMP, RECTANGULAR SECTION, 1050MM LONG 900MM CAPACITY | Code: SBC/42 Bar Length: 1050mm Clamp Capacity: 900mm Throat Depth: 50mm (2") Width of Clamp Face: 30mm (1-3/16") | $82.00 ex-GST | ||
| GZ-39112 | SBC/36 GROZ SASH CLAMP, RECTANGULAR SECTION, 900MM LONG 750MM CAPACITY | Code: SBC/36 Bar Length: 900mm Clamp Capacity: 750mm Throat Depth: 50mm (2") Width of Clamp Face: 30mm (1-3/16") | $73.00 ex-GST | ||
| GZ-39111 | SBC/30 GROZ SASH CLAMP, RECTANGULAR SECTION, 750MM LONG 600MM CAPACITY | Code: SBC/30 Bar Length: 750mm Clamp Capacity: 600mm Throat Depth: 50mm (2") Width of Clamp Face: 30mm (1-3/16") | $59.00 ex-GST | ||
| GZ-39110 | SBC/24 GROZ SASH CLAMP, RECTANGULAR SECTION, 600MM LONG 450MM CAPACITY | Code: SBC/24 Bar Length: 600mm Clamp Capacity: 450mm Throat Depth: 50mm (2") Width of Clamp Face: 30mm (1-3/16") | $57.00 ex-GST |
