OSC-8 PENDULUM WEAVE WELDER

• Voltage: 14-24V DC
• Power: 50W
• Torch Type: MIG / MAG
• Torch Diameter: 16-22mm (5/8-7/8″)
• Oscillation Type: Pendulum
• Oscillation Width At r=150 mm (6″): 12–115 cycles/min (1-100%) , 1/32″ to 1-3/16″ (1-100%)
• Oscillation Speed At Oscillation Width Of 10mm (3/8″) And Zero Dwell Time On Ends: 1/32″ to 1-3/16″ (1-100%)
• Oscillation Dwell Time On Ends: 8 Nm (5.7 lb ft)
• Required Ambient Temperature: 0-50°C
• Weight: 2kg

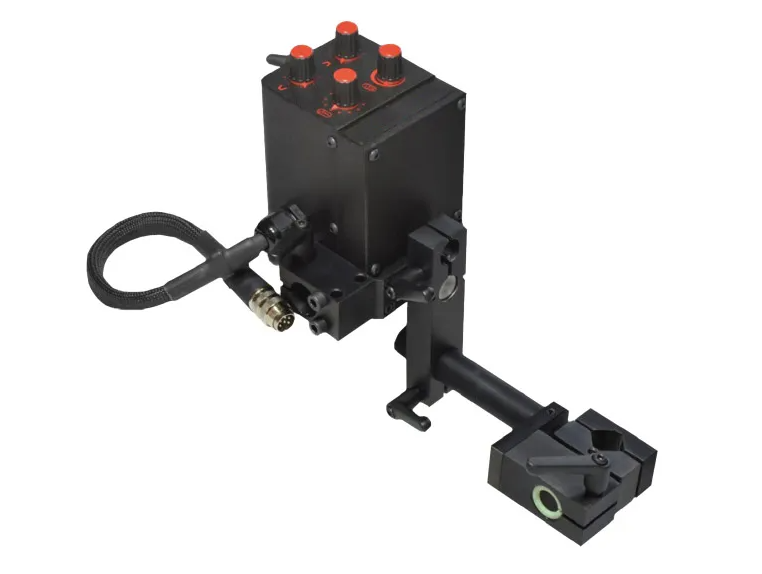

The OSC-8 pendulum oscillator is designed to oscillate MIG/MAG torches with the diameter of 16-22mm (5/8–7/8″).
The oscillator is installed onto a 22mm (7/8″) diameter rod and connected to a welding device.
It can be controlled manually or by using an external START-STOP switch.
Using an optional freestanding support allows welding of rotating pipes or moving plates. An optional power supply allows connecting the oscillator to a 230V power source.
OSC-8 is suitable for MIG/MAG automate processes in heavy fabrication industries such as: pipeline and bridge construction, shipbuilding and tank welding.

OSC-8 can work either as stand-alone Pendulum Weave Welder or along with freestanding support or along with welding carriages.

• Lightweight and compact design
• Two control modes: manual and external start
• Four adjustable parameters (oscillation width, oscillation speed, oscillation dwell time on ends)
• Simple control panel (four knobs)
• Can work as stand-alone device or be a part of more advanced welding system
• Optimal solution for various welding applications
• Real improvement of the welding process
• Uniform and high quality welding
• Supply voltage 14-24V (direct connection to the welding tractor or an external automation system)
• Optional power supply 230V
