Power supply: 115-230VAC / 50-60Hz
Power: 13W
Torch grip diameter: 28-35mm
Chassis to material clearance: 7.5mm
Travel mechanism: 4 Knurled Wheels, 2 Wheel Drive
Guiding equipment: Optional V Type Rail With Grooves At 152mm Centres, 1800mm Length (Part# WAP-D6010)
Cutting speed: 0-1500mm/min
Chassis dimensions: 427mm(L) x 189mm(W) x 180mm(H)
Weight: 16.8kg

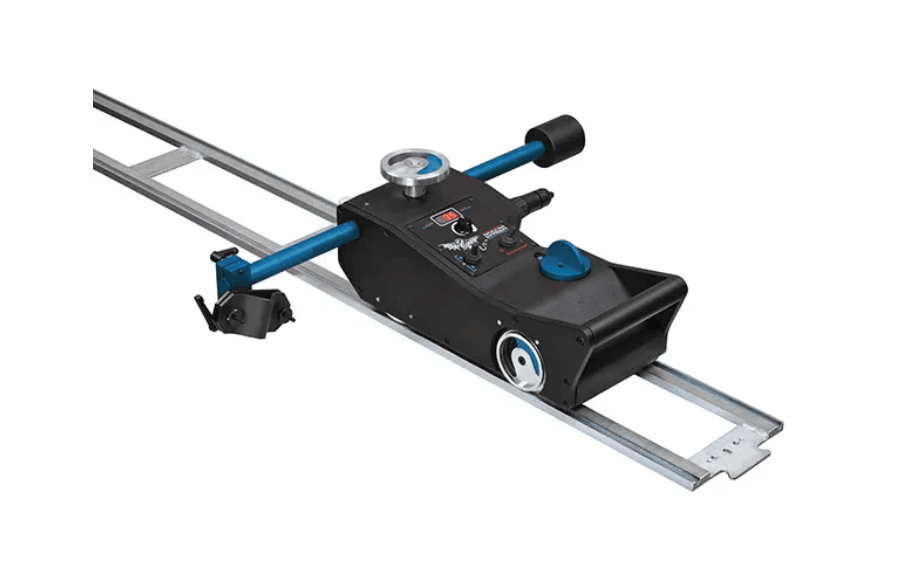

ITM “DRAGON” OXY CUTTING AND BEVELLING CARRIAGE, 240V
Price range: $89.00 through $3,079.00 ex-GST
The Dragon is designed to carry a range of oxy-fuel cutting torches with a grip diameter 28 – 35mm, to perform machine quality cutting and bevelling processes in a variety of applications.
- Cutting and bevelling 0° to 45° (also parallel with 2 torches)
- Quick clamping torch holder for torch diameter 28mm to 35mm
- Advanced speed control system with implemented digital control loop feedback PID regulator
- LED display with readout of actual and set speed, and report messages
- Travel on a rail or directly on a workpiece
- 2-wheel drive with automatic braking drive unit
- Quick drive release switch for easy re-positioning
- Connectable rails to form various lengths
- Rigid and heat-proof design
| Weight | 20.835 kg |
|---|---|
| brand |
| Image | Code | Product Name | Specifications | Price | Quantity | |
|---|---|---|---|---|---|---|
 | WAP-D6190 | ITM ROLLER SUPPORT TO SUIT DRAGON | $359.00 ex-GST | |||
 | WAP-D6180 | ITM CABLE ANCHOR TO SUIT DRAGON | $374.00 ex-GST | |||
 | WAP-D6170 | TM GEARED RACK, 1000MM, TO SUIT RAILBULLS, RAILTUG & DRAGON | $572.00 ex-GST | |||
 | WAP-D6165 | ITM GEARED RACK, 700MM, TO SUIT RAILBULLS, RAILTUG & DRAGON | $307.00 ex-GST | |||
 | WAP-D6160 | TM LARGE COUNTERWEIGHT TO SUIT RAILTUG & DRAGON | $89.00 ex-GST | |||
| WAP-D6155 | TM COUNTERWEIGHT TO SUIT RAILTUG & DRAGON | $307.00 ex-GST | |||
 | WAP-D6150 | ITM CIRCLE CUTTING ATTACHMENT TO SUIT DRAGON | $692.00 ex-GST | |||
 | WAP-D6060 | ITM SLIDE RACK HOLDER TO SUIT DRAGON | $614.00 ex-GST | |||
 | WAP-D6050 | ITM MACHINE TORCH HOLDER,35MM, WITH PRECISION ANGLE ADJUSTMENT TO SUIT DRAGON | $718.00 ex-GST | |||
 | WAP-D6040 | TM MACHINE TORCH HOLDER, 35MM, STANDARD ANGLE ADJUSTMENT TO SUIT RAILBULLS, RAILTUG & DRAGON | $579.00 ex-GST | |||
 | WAP-D6035 | ITM MACHINE TORCH HOLDER, 30MM, STANDARD ANGLE ADJUSTMENT TO SUIT RAILBULLS, RAILTUG & DRAGON | $609.00 ex-GST | |||
| WAP-D6030 | ITM TORCH HOLDER, WITH PRECISION ANGLE & HEIGHT ADJUSTMENT, TO SUIT RAILBULLS, RAILTUG & DRAGON | $1,082.00 ex-GST | |||
 | WAP-D6020 | ITM TORCH HOLDER, STANDARD ANGLE ADJUSTMENT TO SUIT RAILBULLS, RAILTUG & DRAGON | $219.00 ex-GST | |||
 | WAP-D6010 | ITM TRACK ASSEMBLY, 1,830MM TO SUIT DRAGON | $775.00 ex-GST | |||
 | WA-DRAGON | ITM "DRAGON" OXY CUTTING AND BEVELLING CARRIAGE, 240V | $3,079.00 ex-GST |
