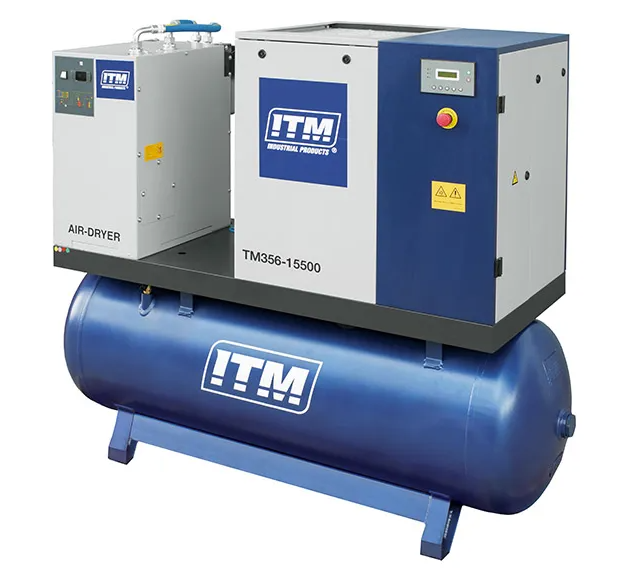

Pump Type: Screw
Motor: 11kW (15hp) – Three Phase 415V
Tank Capacity: 500 L
Max Pressure: 147 PSI (10 bar)
Free Air Delivery: 1620 L/min (57cfm)
Noise: 72 dB
Compressor Dimensions: 188cm L x 65cm W x 158cm H
Net Weight: 465kg
Shipping Dimensions:205cm L x 90cm W x 175cm H
Gross Weight: 518kg
Effective Working Pressure At Outlet Package: 10.0 bar
<h3|LIMITATIONS FOR OPERATIONS</h3|
<ol|
Maximum Effective Working Pressure At Outlet Package: 10.0 bar
Minimum Effective Working Pressure At Outlet Package: 5.5 bar
Maximum Allowable Inlet Temperature: 45°C
Minimum Ambient Temperature: 0°C
</ol|
<h3|PERFORMANCE DATA COMPRESSOR</h3|
<ol|
Free Air Delivery At Reference Conditions: 22.78L/s or 1.4m³/min or 48.3cfm
Mean Sound Pressure Level (2): 72 dBA
</ol|
