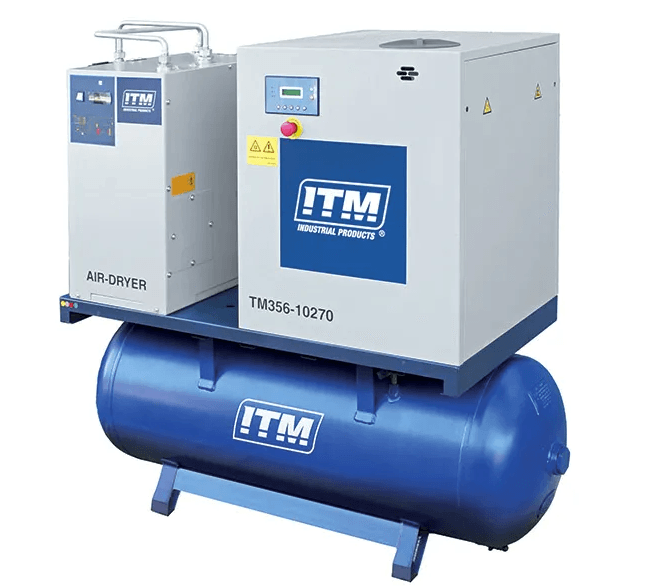

Pump Type: Screw
Motor: 7.5kW (10HP) – Three Phase 415V
Tank Capacity: 270 L
Max Pressure: 147 PSI (10 Bar)
Free Air Delivery: 1080 L/min (38CFM)
Noise: 66 dB
Compressor Dimensions: 154cm L x 74cm W x 144cm H
Net Weight: 358kg
Shipping Dimensions:174cm L x 99cm W x 197cm H
Gross Weight: 448kg
Effective Working Pressure At Outlet Package: 10.0 bar
<h3|LIMITATIONS FOR OPERATIONS</h3|
<ol|
Maximum Effective Working Pressure At Outlet Package: 10.0 bar
Minimum Effective Working Pressure At Outlet Package: 5.0 bar
Maximum Allowable Inlet Temperature: 46°C
Minimum Ambient Temperature: 0°C
</ol|
<h3|PERFORMANCE DATA COMPRESSOR</h3|
<ol|
Free Air Delivery At Reference Conditions: 14.17L/s or 0.85m³/min or 30.0cfm
Mean Sound Pressure Level (2): 68 dBA
</ol|
