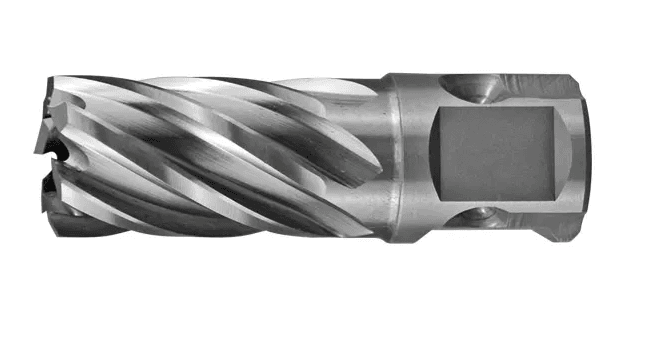

HOLEMAKER SILVER SERIES ANNULAR CUTTER, UNI SHANK 12MM X 25MM

Diameter: 12mm
Depth Of Cut: 25mm
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4″
Pilot Pin To Suit – SP16003

M2AL HIGH SPEED STEEL MATERIAL.
M2AL high speed steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

STEP HARDENED PROCESS.
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is lesssusceptible to breakage than standard high speed steel cutters.

MULTI-CUT GEOMETRY.
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centring.

FULLY GROUND WITH INTERNAL RELIEF.
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.

UNIVERSAL SHANK.
19.05mm (3/4″”) universal shank for cutters up to and including 60mm diameter. Featuring 2 flat sections to suit most magnetic base drilling machines. Cutters of diameters 61mm and above feature a 31.75mm, 1-1/4″ Weldon shank. M2AL high speed steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.

Pilot Pin To Suit – SP16003
