Diameter: 4.70mm
Annular Cutter Depth of Cut: 25mm
Overall Length: 77mm

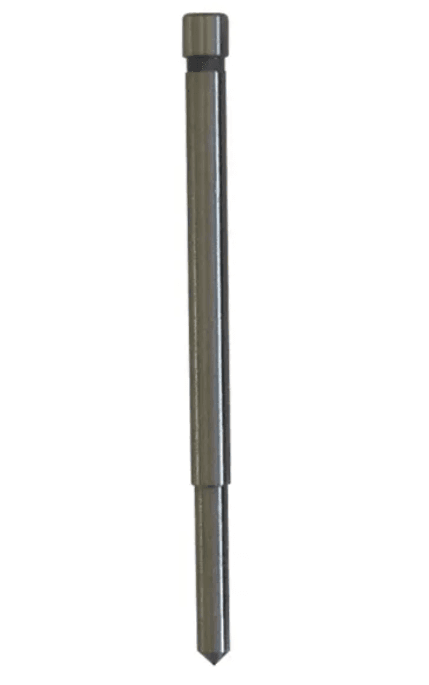

HOLEMAKER PILOT PIN, 4.73MM x 77MM, TO SUIT 12-14MM X 25MM DEPTH OF CUT
Price range: $22.00 through $92.00 ex-GST
A pilot pin serves three main purposes:.
Ejects the slug at the end of the cut.
Provides coolant feed into the centre of the cutter.
Locates the centre of the cut
| Weight | 0.01 kg |
|---|---|
| brand |
| Image | Code | Product Name | Specifications | Price | Quantity | |
|---|---|---|---|---|---|---|
 | SP20007 | HOLEMAKER PILOT PIN 8MM 2 PIECE, TO SUIT 150MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 150mm Overall Length: 205mm | $78.00 ex-GST | ||
| SP20005 | HOLEMAKER PILOT PIN 8MM 2 PIECE, TO SUIT 125MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 125mm Overall Length: 184mm | $74.00 ex-GST | ||
| SP20003 | HOLEMAKER PILOT PIN 8MM 2 PIECE, TO SUIT 100MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 100mm Overall Length: 158mm | $69.00 ex-GST | ||
| SP20001 | HOLEMAKER PILOT PIN 8MM 2 PIECE, TO SUIT 75MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 75mm Overall Length: 130mm | $63.00 ex-GST | ||
 | SP18200 | HOLEMAKER PILOT PIN 8MM TO SUIT EXTENSION ARBOR | Diameter: 8mm Annular Cutter Depth of Cut: 200mm Overall Length: 255mm | $82.00 ex-GST | ||
| SP18175 | HOLEMAKER PILOT PIN 8MM TO SUIT EXTENSION ARBOR | Diameter: 8mm Annular Cutter Depth of Cut: 175mm Overall Length: 230mm | $74.00 ex-GST | ||
| SP18150 | HOLEMAKER PILOT PIN 8MM TO SUIT 150MM LONG CUTTERS & EXTENSION ARBOR | Diameter: 8mm Annular Cutter Depth of Cut: 150mm Overall Length: 205mm | $74.00 ex-GST | ||
| SP18125 | HOLEMAKER PILOT PIN 8MM TO SUIT EXTENSION ARBOR | Diameter: 8mm Annular Cutter Depth of Cut: 125mm Overall Length: 180mm | $65.00 ex-GST | ||
| SP18100 | HOLEMAKER PILOT PIN 8MM TO SUIT 100MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 100mm Overall Length: 160mm | $65.00 ex-GST | ||
| SP18075 | HOLEMAKER PILOT PIN 8MM TO SUIT 75MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 50mm Overall Length: 108mm | $65.00 ex-GST | ||
| SP18050 | HOLEMAKER PILOT PIN 8MM TO SUIT 50MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 50mm Overall Length: 108mm | $44.00 ex-GST | ||
| SP18035 | HOLEMAKER PILOT PIN 8MM TO SUIT 35MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 35mm Overall Length: 90mm | $44.00 ex-GST | ||
| SP18025 | HOLEMAKER PILOT PIN 8MM TO SUIT 25MM LONG CUTTERS | Diameter: 8mm Annular Cutter Depth of Cut: 25mm Overall Length: 77mm | $37.00 ex-GST | ||
 | SP16015 | HOLEMAKER PILOT PIN, 6.34MM x 90MM, TO SUIT 12-17MM MAX35 CUTTERS | Diameter: 6.34mm Annular Cutter Depth of Cut: Suit MAX35 (12 - 17mm ) Overall Length: 90mm | $27.00 ex-GST | ||
| SP16013 | HOLEMAKER PILOT PIN, 6.34mm x 239mm TO SUIT EXTENSION ARBOR | Diameter: 6.34mm Annular Cutter Depth of Cut: 175mm Overall Length: 239mm | $92.00 ex-GST | ||
| SP16012 | HOLEMAKER PILOT PIN, 6.34MM x 203MM TO SUIT EXTENSION ARBOR | Diameter: 6.34mm Annular Cutter Depth of Cut: 150mm Overall Length: 203mm | $86.00 ex-GST | ||
| SP16011 | HOLEMAKER PILOT PIN, 6.34MM x 178MM TO SUIT MAX100 (14-16MM) AND EXTENSION ARBOR | Diameter: 6.34mm Annular Cutter Depth of Cut: 125mm Overall Length: 188mm | $80.00 ex-GST | ||
| SP16010 | HOLEMAKER PILOT PIN, 6.34MM x 153MM TO SUIT EXTENSION ARBOR | Diameter: 6.34mm Annular Cutter Depth of Cut: 100mm - Suit Extensions Arbors Overall Length: 153mm | $74.00 ex-GST | ||
| SP16009 | HOLEMAKER PILOT PIN, 6.34MM x 160MM TO SUIT 14 - 17MM MAX100 CUTTERS | Diameter: 6.34mm Annular Cutter Depth of Cut: 100mm - Suit MAX100 (14 - 17mm ) Overall Length: 160mm | $65.00 ex-GST | ||
| SP16008 | HOLEMAKER PILOT PIN, 6.34MM x 133MM TO SUIT 1-1/4" SHANK 2" DEPTH OF CUT | Diameter: 6.34mm Annular Cutter Depth of Cut: 50mm 1-1/4" Shank Overall Length: 133mm | $65.00 ex-GST | ||
| SP16005 | HOLEMAKER PILOT PIN, 6.34MM X 127MM, TO SUIT 75MM DEPTH OF CUT CUTTERS | Diameter: 6.34mm Annular Cutter Depth of Cut: 75mm Overall Length: 127mm | $65.00 ex-GST | ||
| SP16004 | HOLEMAKER PILOT PIN, 6.34MM x 102MM, TO SUIT 50MM DEPTH OF CUT CUTTERS | Diameter: 6.34mm Annular Cutter Depth of Cut: 50mm Overall Length: 102mm | $27.00 ex-GST | ||
| SP16003 | HOLEMAKER PILOT PIN, 6.34MM x 77MM, TO SUIT 25MM DEPTH OF CUT CUTTERS | Diameter: 6.34mm Annular Cutter Depth of Cut: 25mm Overall Length: 77mm | $22.00 ex-GST | ||
| SP16002 | HOLEMAKER PILOT PIN, 4.73MM x 102MM, TO SUIT 12-14MM X 50MM DEPTH OF CUT | Diameter: 4.70mm Annular Cutter Depth of Cut: 50mm Overall Length: 102mm | $31.00 ex-GST | ||
| SP16001 | HOLEMAKER PILOT PIN, 4.73MM x 77MM, TO SUIT 12-14MM X 25MM DEPTH OF CUT | Diameter: 4.70mm Annular Cutter Depth of Cut: 25mm Overall Length: 77mm | $26.00 ex-GST |
