Larger Rail Sizes & Acme Spindle For Heavy Duty Applications.
Swivel pad ensures even pressure is applied on angular workpieces
Span: 50mm
Depth: 50mm
Rail Size: 19.5 x 9.5mm
Clamping Force: 1000KG

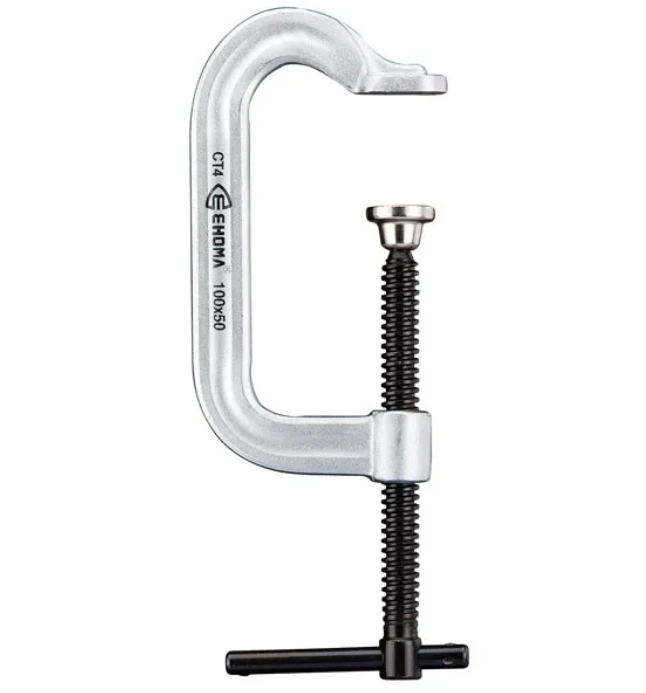

EHOMA HEAVY DUTY “C” CLAMP
Price range: $98.00 through $240.00 ex-GST
| Weight | 0.5 kg |
|---|
| Image | Code | Product Name | Specifications | Price | Quantity | |
|---|---|---|---|---|---|---|
 | EC-CT-8 | EHOMA HEAVY DUTY "C" CLAMP 200MM X 90MM 2200KGP | Span: 200mm Depth: 90mm Rail Size: 30 x 15mm Clamping Force: 2200KG | $240.00 ex-GST | ||
| EC-CT-6 | EHOMA HEAVY DUTY "C" CLAMP 150MM X 75MM 1800KGP | Span: 150mm Depth: 75mm Rail Size: 25 x 12mm Clamping Force: 1800KG | $182.00 ex-GST | ||
| EC-CT-4 | EHOMA HEAVY DUTY "C" CLAMP 100MM X 60MM 1500KGP | Span: 100mm Depth: 60mm Rail Size: 25 x 12mm Clamping Force: 1500KG | $146.00 ex-GST | ||
| EC-CT-3 | EHOMA HEAVY DUTY "C" CLAMP 75MM X 50MM 1300KGP | Span: 75mm Depth: 50mm Rail Size: 22 x 10.5mm Clamping Force: 1300KG | $115.00 ex-GST | ||
| EC-CT-2 | EHOMA HEAVY DUTY "C" CLAMP 50MM X 50MM 750KGP | Span: 50mm Depth: 50mm Rail Size: 19.5 x 9.5mm Clamping Force: 1000KG | $98.00 ex-GST |
