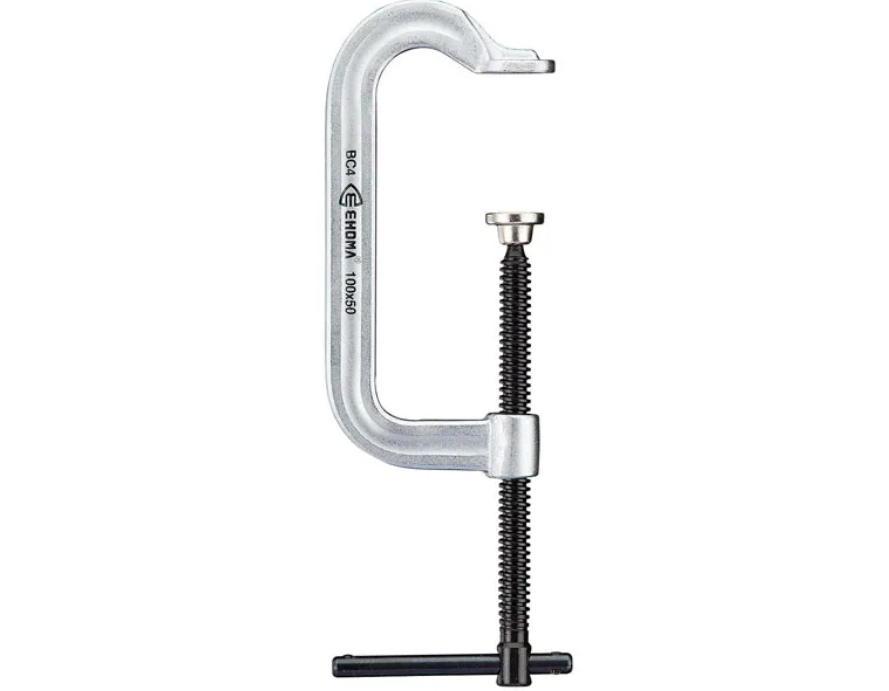

EHOMA GENERAL PURPOSE “C” CLAMP
Price range: $110.00 through $479.00 ex-GST
Swivel pad ensures even pressure is applied on angular workpieces.
Tempered and hot forged steel for rigidity.
Cold drawn profiled steel. Precisely controlled hardening and tempering process over the whole clamp body gives strength for high clamping force.
Nickel and chrome plating for high corrosion resistance.
Span: 250mm
Depth: 115mm
Rail Size: 27 x 13mm
Clamping Force: 1200KG
| Weight | 2 kg |
|---|
| Image | Code | Product Name | Specifications | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|
 | EC-BC16 | EHOMA GENERAL PURPOSE "C" CLAMP 400MM X 175MM 2000KGP | Span: 400mm Depth: 175mm Rail Size: 40 x 20mm Clamping Force: 2000KG | In Stock | $479.00 ex-GST | ||
| EC-BC14 | EHOMA GENERAL PURPOSE "C" CLAMP 350MM X 150MM 1800KGP | Span: 350mm Depth: 150mm Rail Size: 36 x 18mm Clamping Force: 1800KG | In Stock | $401.00 ex-GST | ||
| EC-BC12 | EHOMA GENERAL PURPOSE "C" CLAMP 300MM X 125MM 1500KGP | Span: 300mm Depth: 125mm Rail Size: 30 x 15mm Clamping Force: 1500KG | In Stock | $292.00 ex-GST | ||
| EC-BC10 | EHOMA GENERAL PURPOSE "C" CLAMP 250MM X 115MM 1200KGP | Span: 250mm Depth: 115mm Rail Size: 27 x 13mm Clamping Force: 1200KG | In Stock | $193.00 ex-GST | ||
| EC-BC8 | EHOMA GENERAL PURPOSE "C" CLAMP 200MM X 100MM 1000KGP | Span: 200mm Depth: 100mm Rail Size: 25 x 12mm Clamping Force: 1000KG | In Stock | $156.00 ex-GST | ||
| EC-BC6 | EHOMA GENERAL PURPOSE "C" CLAMP 150MM X 75MM 1000KGP | Span: 150mm Depth: 75mm Rail Size: 22.0 x 10.5mm Clamping Force: 1000KG | In Stock | $125.00 ex-GST | ||
| EC-BC5 | EHOMA GENERAL PURPOSE "C" CLAMP 125MM X 65MM 850KGP | Span: 125mm Depth: 65mm Rail Size: 19.5 x 9.5mm Clamping Force: 850KG | In Stock | $110.00 ex-GST | ||
| EC-BC4 | EHOMA GENERAL PURPOSE "C" CLAMP 100MM X 50MM 900KGP | Span: 100mm Depth: 50mm Rail Size: 19.5 x 9.5mm Clamping Force: 900KG | In Stock | $110.00 ex-GST |
