Price range: $7.00 through $448.00 ex-GST
Tempered and hot forged steel for rigidity.
Cold drawn profiled steel. Precisely controlled hardening and tempering process over the whole clamp body gives strength for high clamping force.
Nickel and chrome plating for high corrosion resistance
Larger rail sizes & acme spindle for heavy duty applications.
Changeable clamping heads.
Socket drive handle.
Tempered and hot forged steel for rigidity.
Cold drawn profiled steel. Precisely controlled hardening and tempering process over the whole clamp body gives strength for high clamping force.
Nickel and chrome plating for high corrosion resistance
Span: 1000mm
Depth: 250mm
Rail Size: 30 x 15mm
Clamping Force: 700KG
| Weight | 5.7 kg |
|---|---|
| brand |
| Image | Code | Product Name | Specifications | Price | Quantity | |
|---|---|---|---|---|---|---|
 | EC-G10CS | EHOMA GENERAL PURPOSE CLAMP 100MM X 50MM 220KGP | Span: 100mm Depth: 50mm Rail Size: 11.5 x 5.7mm Clamping Force: 220KG | $50.00 ex-GST | ||
| EC-G16CS | EHOMA GENERAL PURPOSE CLAMP 160MM X 80MM 300KGP | Span: 160mm Depth: 80mm Rail Size: 16 x 7.5mm Clamping Force: 300KG | $66.00 ex-GST | ||
| EC-G20CS | EHOMA GENERAL PURPOSE CLAMP 200MM X 100MM 450KGP | Span: 200mm Depth: 100mm Rail Size: 19.5 x 9.5mm Clamping Force: 450KG | $86.00 ex-GST | ||
| EC-G25CS | EHOMA GENERAL PURPOSE CLAMP 250MM X 120MM 550KGP | Span: 250mm Depth: 120mm Rail Size: 22 x 10.5mm Clamping Force: 550KG | $103.00 ex-GST | ||
| EC-G30CS | EHOMA GENERAL PURPOSE CLAMP 300MM X 140MM 670KGP | Span: 300mm Depth: 140mm Rail Size: 25 x 12mm Clamping Force: 670KG | $125.00 ex-GST | ||
| EC-G40CS | EHOMA GENERAL PURPOSE CLAMP 400MM X 175MM 1000KGP | Span: 400mm Depth: 175mm Rail Size: 27 x 13mm Clamping Force: 1000KG | $167.00 ex-GST | ||
| EC-G60CS | EHOMA GENERAL PURPOSE CLAMP 600MM X 175MM 1000KGP | Span: 600mm Depth: 175mm Rail Size: 27 x 13mm Clamping Force: 1000K+G | $198.00 ex-GST | ||
| EC-G80CS | EHOMA GENERAL PURPOSE CLAMP 800MM X 175MM 1000KGP | Span: 800mm Depth: 175mm Rail Size: 27 x 13mm Clamping Force: 1000KG | $245.00 ex-GST | ||
| EC-G100CS | EHOMA STANDARD PAD TO SUIT G16CS | Span: 1000mm Depth: 175mm Rail Size: 27 x 13mm Clamping Force: 1000KG | $302.00 ex-GST | ||
 | EC-PAD16CS | EHOMA STANDARD PAD TO SUIT G20CS/G25CS | To Suit Rail Size: 16.0mm | $15.00 ex-GST | ||
| EC-PAD20CS | EHOMA STANDARD PAD TO SUIT G30CS - G100CS | To Suit Rail Size: 19.5mm / 22.0mm | $15.00 ex-GST | ||
| EC-PAD30CS | EHOMA WOOD PAD SET (1X OVAL, 1X ROUND) TO SUIT REG20C & G20CS | To Suit Rail Size: 25.0mm / 27.0mm | $15.00 ex-GST | ||
 | EC-PPAD20 | EHOMA WOOD PAD SET (1X OVAL, 1X ROUND) TO SUIT REG30C & G30CS | To Suit Clamps: ECG20CS, ECREG20C | $7.00 ex-GST | ||
| EC-PPAD30 | EHOMA GENERAL DUTY CLAMP 300MM X 200MM 800KGP | To Suit Clamps: ECG30CS, ECSG40CS, ECG40CS, ECSG50CS, ECSG60CS, ECG60CS, ECSG80CS, ECG80CS,ECREG30C, ECREG40C, ECREG50C, ECREG60C | $7.00 ex-GST | ||
 | EC-SD30T20 | EHOMA GENERAL DUTY CLAMP 500MM X 250MM 700KGP | Span: 300mm Depth: 200mm Rail Size: 30 x 15mm Clamping Force: 800KG | $260.00 ex-GST | ||
 | EC-SD50T25 | EHOMA GENERAL DUTY CLAMP 500MM X 250MM 700KGP | Span: 500mm Depth: 250mm Rail Size: 30 x 15mm Clamping Force: 700KG | $323.00 ex-GST | ||

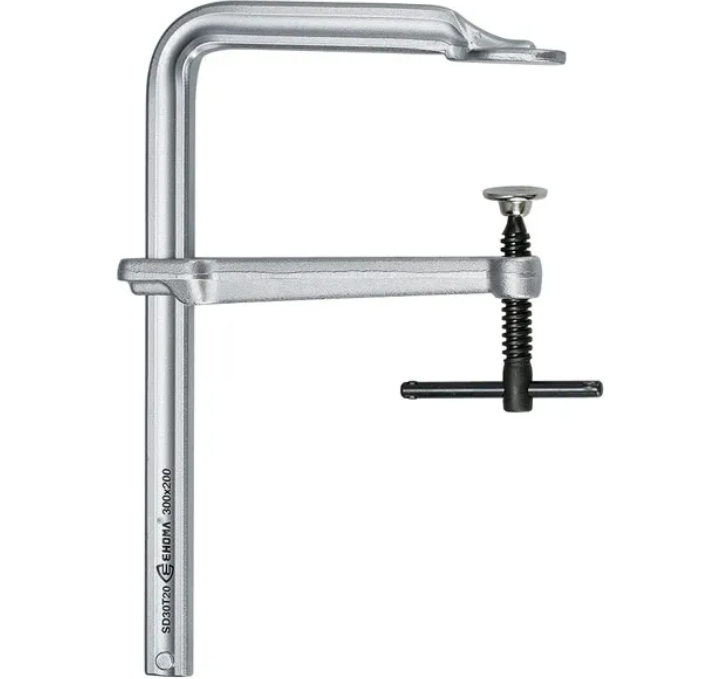

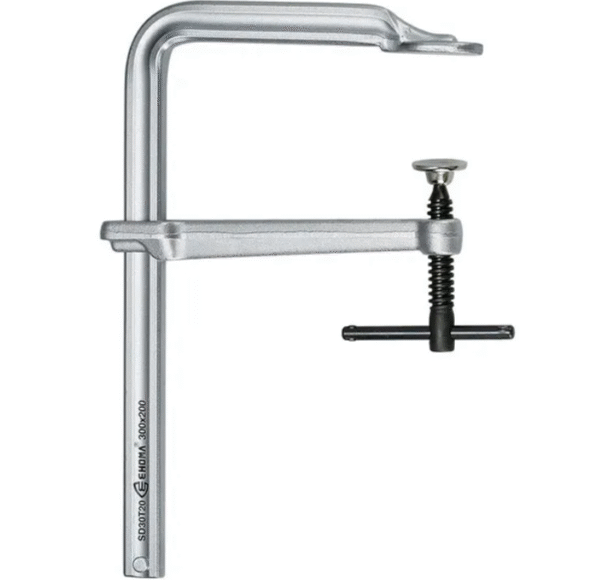

| EC-SD100T25 | EHOMA GENERAL DUTY CLAMP 1000MM X 250MM 700KGP | Span: 1000mm Depth: 250mm Rail Size: 30 x 15mm Clamping Force: 700KG | $448.00 ex-GST | ||
| EC-SG40CS | EHOMA GENERAL PURPOSE CLAMP 400MM X 120MM 750KGP | Span: 400mm Depth: 120mm Rail Size: 25 x 12mm Clamping Force: 750KG | $146.00 ex-GST | ||
| EC-SG50CS | EHOMA GENERAL PURPOSE CLAMP 500MM X 120MM 750KGP | 120MM 750KGP Span: 500mm Depth: 120mm Rail Size: 25 x 12mm Clamping Force: 750KG | $188.00 ex-GST | ||
| EC-SG60CS | EHOMA GENERAL PURPOSE CLAMP 800MM X 120MM 1000KGP | Span: 600mm Depth: 120mm Rail Size: 25 x 12mm Clamping Force: 750KG | $193.00 ex-GST | ||
| EC-SG80CS | EHOMA GENERAL PURPOSE CLAMP 800MM X 120MM 1000KGP | Span: 800mm Depth: 120mm Rail Size: 27 x 13mm Clamping Force: 1000KG | $250.00 ex-GST | ||
| EC-SG125CS | EHOMA GENERAL PURPOSE CLAMP 1250MM X 120MM 1,000KGP | Span: 1250mm Depth: 120mm Rail Size: 27 x 13mm Clamping Force: 1000KG | $349.00 ex-GST |
