Span: 1000mm
Depth: 175mm
Rail Size: 40 x 20mm
Clamping Force: 2200KG

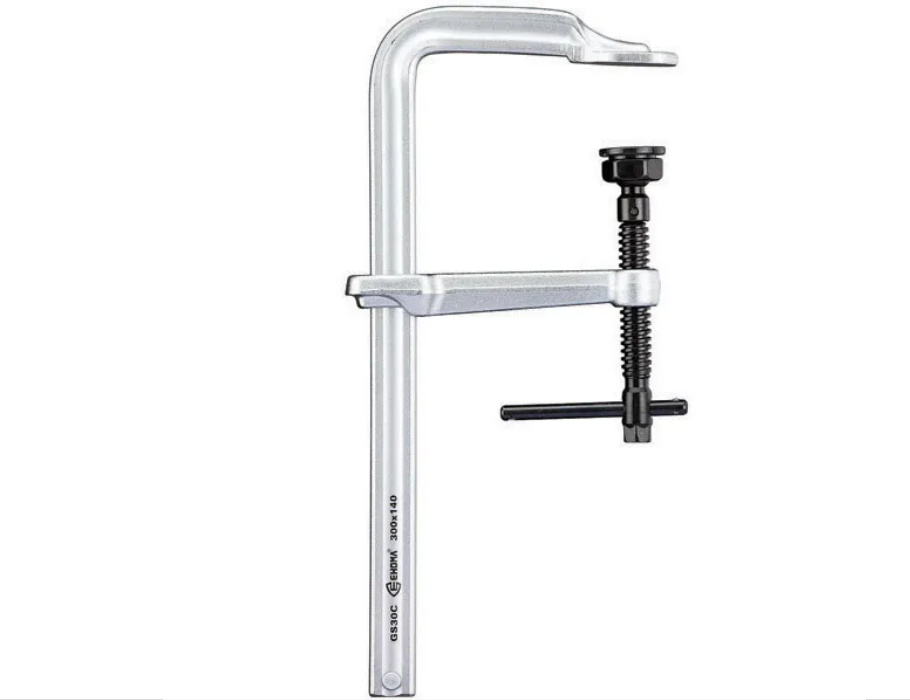

EHOMA EXTRA H.D. CLAMP
Price range: $474.00 through $947.00 ex-GST
Larger rail sizes & acme spindle for heavy duty applications.
Changeable clamping heads.
Socket drive handle.
Tempered and hot forged steel for rigidity.
Cold drawn profiled steel. Precisely controlled hardening and tempering process over the whole clamp body gives strength for high clamping force.
Nickel and chrome plating for high corrosion resistance
| Weight | 9.43 kg |
|---|---|
| brand |
| Image | Code | Product Name | Specifications | Price | Quantity | |
|---|---|---|---|---|---|---|
 | EC-SS150C | EHOMA EXTRA H.D. CLAMP 1500MM X 175MM 2200KGP (CHANGEABLE PADS) | Span: 1500mm Depth: 175mm Rail Size: 40 x 20mm Clamping Force: 2200KG | $947.00 ex-GST | ||
| EC-SS100C | EHOMA EXTRA H.D. CLAMP 1000MM X 175MM 2200KGP (CHANGEABLE PADS) | Span: 1000mm Depth: 175mm Rail Size: 40 x 20mm Clamping Force: 2200KG | $760.00 ex-GST | ||
| EC-SS60C | EHOMA EXTRA H.D. CLAMP 600MM X 175MM 2200KGP (CHANGEABLE PADS) | Span: 600mm Depth: 175mm Rail Size: 40 x 20mm Clamping Force: 2200KG | $562.00 ex-GST | ||
| EC-SS50C | EHOMA EXTRA H.D. CLAMP 500MM X 175MM 2200KGP (CHANGEABLE PADS) | Span: 500mm Depth: 175mm Rail Size: 40 x 20mm Clamping Force: 2200KG | $541.00 ex-GST | ||
| EC-SS40C | EHOMA EXTRA H.D. CLAMP 400MM X 175MM 2200KGP (CHANGEABLE PADS) | Span: 400mm Depth: 175mm Rail Size: 40 x 20mm Clamping Force: 2200KG | $505.00 ex-GST | ||
| EC-SS30C | EHOMA EXTRA H.D. CLAMP 300MM X 175MM 2200KGP (CHANGEABLE PADS) | Span: 300mm Depth: 175mm Rail Size: 40 x 20mm Clamping Force: 2200KG | $474.00 ex-GST |
