PROCESS
- MIG SINGLE / DUAL PULSE
- MIG SYNERGIC / MANUAL
- MIG GAS / GASLESS
- TIG LIFT DC
- STICK (MMA)
FEATURES
• 300A Output
• 5″ Colour LCD Screen
• 2T/4T/S4T/Spot Weld
• Suits D200 & D300 Spools
• 4 Roll Wire Drive System
• 4-Wheel Trolley
• Weld Parameter Storage
- Duty Cycle – 60% @ 300A
- Generator – 18 Kva
- Plate Thickness = Max. 16mm
Material
- Mild Steel
- Stainless
- Carbon Steel
- Copper Steel
- Aluminium (MIG only)
STANDARD PACKAGE INCLUSIONS

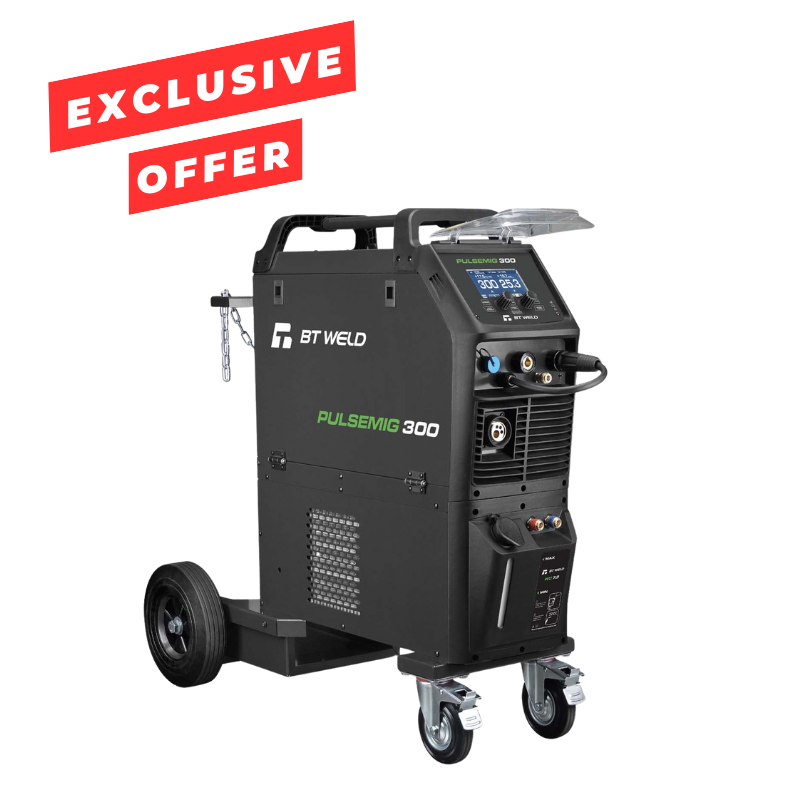

- BT PULSEMIG 300 Compact Inverter Welder 415V 658302
- BT Water Cooler 7L 3 Phase 415V 652222
- BT 4 Wheel Trolley 699577
- Ergon BZ501 MIG Torch 3Mt 92.ER.501.3
- Twist Lock Electrode Holder 3Mt 500044
- Earth Clamp 300Amp 3Mt 500060
- Argon Twin Gauge Regulator 400209T
- Quick Connect Gas Hose 2Mt 619000
- Drive Roller 0.9/1.2mm V Groove (Fitted) RV301012.09.12
- Drive Roller 1.0/1.2mm U Groove Spare 2pcs RU301012.10.12
SPECIFICATIONS
| Primary Input Power | 3 Phase 415V 50-60 HZ +/-15% | ||
| Duty Cycle @ 40˚C 10min | 60% @ 300A 100% @ 235A | ||
| MIG | TIG | MMA | |
| Effective Current (A) | 15.9 | 12.6 | 17.1 |
| Rated Input Current (A) | 20.6 | 16.3 | 22.1 |
| Rated Input Power (KW) | 14.3 | 11.3 | 15.4 |
| Welding Current Range (A) | 20-300 | 10-300 | 10-300 |
| Welding Voltage Range (V) | 115-26.5 | 10.4-22 | 20.4-32 |
| I Max (A) | 20.5 | 16.5 | 22.0 |
| I eff (A) | 15.9 | 12.8 | 17.0 |
| Wire Diameter Range | 0.6 – 1.6mm | ||
| Electrode Diameter Range | 1.6 – 5mm | ||
| Protection / Insulation Class | IP21S / S | ||
| Power Factor / Efficiency | 0.99 / 85.8% | ||
| Thermal Overload | Yes | ||
| Dimensions / Weight | L72 x W26 x H49 cm / 28.5kg | ||
| Weight | 28kg (A) / 30.5kg (W) | ||
| Warranty | 3 Year | ||
