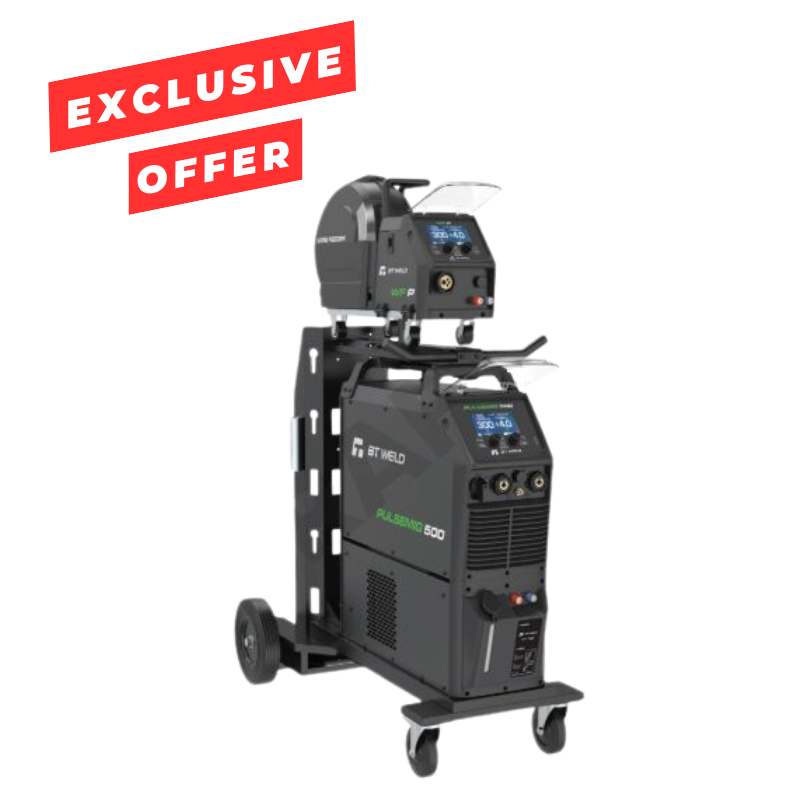

BT Weld Double PULSE MIG 500
Original price was: $9,414.00.$8,475.00Current price is: $8,475.00. inc. GST
DESCRIPTION:
- Duty Cycle: 60% @ 500a
- Generator: 32 Kva
- Plate Thickness: Max. 30mm
- Material: Mild Steel, Stainless Steel, Brass / Copper, Aluminium (MIG only)
PROCESS:
- MIG SINGLE / DUAL PULSE
- MIG SYNERGIC / MANUAL
- MIG GAS / GASLESS
- TIG LIFT DC
- STICK (MMA)
FEATURES:
• 500A Output
• 5″ Colour LCD Screen
• Water Cooled 7L
• 2T/4T/S4T/Spot Weld
• Suits D200 & D300 Spools
• 4 Roll Wire Drive System
• 4-Wheel Trolley
• Weld Parameter Storage
• Separate Wire Feeder
SPECIFICATIONS:
| Primary Input Power | 3 Phase 415V 50-60 HZ +/-15% |
| Duty Cycle @ 40 ̊C 10min | 60% @ 500A 100% @ 410A |
| MIG | TIG | MMA | |
| Effective Current (A) | 31.6 | 26.6 | 32.8 |
| Rated Input Current (A) | 40.8 | 34.3 | 42.4 |
| Rated Input Power (KW) | 28.2 | 23.8 | 29.4 |
| Welding Current Range (A) | 20-500 | 10-500 | 10-500 |
| Welding Voltage Range (V) | 14.8-39 | 10.4-30 | 20.4-40 |
| I Max (A) | 40.5 | 33.0 | 41.5 |
| I eff (A) | 31.4 | 25.6 | 32.1 |
| Wire Diameter Range | 0.6-1.6mm |
| Electrode Diameter Range | 1.6-5mm |
| Protection / Insulation Class | IP23S/S |
| Power Factor / Efficiency | 0.77/90% |
| Thermal Overload | Yes |
| Dimensions | L27 x W27 x H49 cm |
| Warranty | 3 Year |
| Part Number | 658503 |
STANDARD PACKAGE INCLUSIONS:
- BT PULSEMIG 500 SWF Inverter Welder 415V
- BT Wire Feeder (WF-P)
- BT Water Cooler 7L 3 Phase 415V
- BT 4 Wheel Trolley MIG
- Interconnection Cables 10Mt
- Ergon BZ501 MIG Torch 4Mt
- Twist Lock Electrode Holder 3Mt
- Earth Clamp 500Amp 3Mt
- Argon Twin Gauge Regulator
- Quick Connect Gas Hose 2Mt
- Drive Roller 0.9/1.2mm V Groove (Fitted)
- Drive Roller 1.2/1.6mm V Groove
