- Spindle speed (without load): 6000 rpm
- Bevel angle (depending on milling head in use): 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°
- Minimal diameter of countersinking: ca 40mm (1.57)
- Rounding edges (option): R2, R3, R4, R5
- Minimal plate thickness: 2mm
- Air requirement: 6 bar (0,6MPa) (87 PSI)
- Air consumption: 1800 L/min , (64 CFM)
- Pneumatic drive: 2800 W
- Minimum required diameter of supply hose: 19 mm (3/4)
- Weight (without milling head): 9.3kg

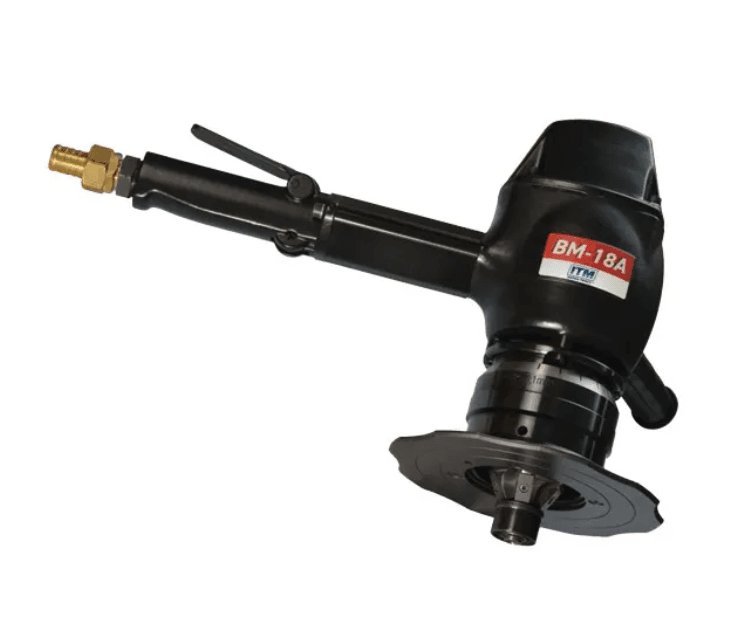

BM18A PNEUMATIC PORTABLE BEVELLER, MAX BEVEL WIDTH 18MM
$4,579.00 ex-GST
In Stock
